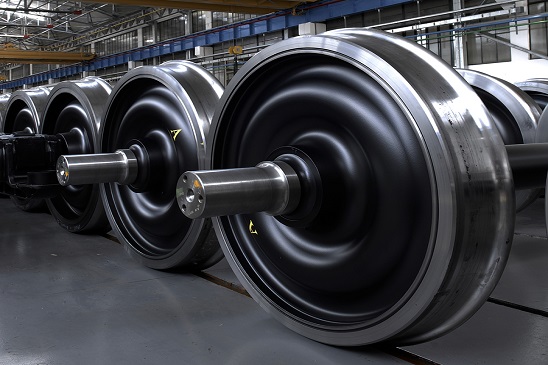

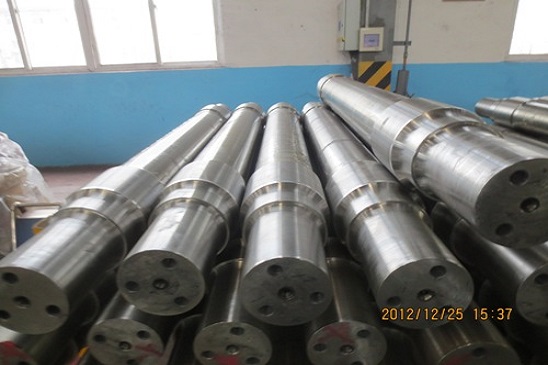

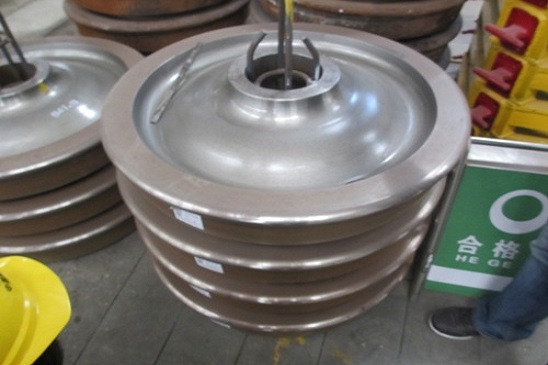

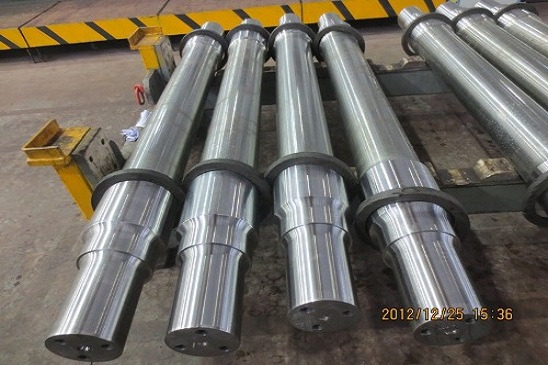

Railway wheel, axle & Railway wheel set

Related Products

• Railway Side Frame

  Side frame is one of the main components of railway bogie.Bosheng offers side frame to suit both narrow gauge and broad gauge in both conventional three-piece and self-steering options. The side frame suit axle loads from 15,000kg to 23,000kg. We produce the side frameas per customers’ technical specifications.

• Railway Bolster

  Bolster is one of the two main component of railway bogie.Bosheng offers railway bogie bolster to suit both narrow gauge and broad gauge in both conventional three-piece and self-steering options. The bolster suit axle loads from 15,000kg to 23,000kg. We produce bolster as per customers’ technical specifications.

• Railway brake block

  We produce cast iron railway brake block and composite railway brake block. Cast iron brake block:There’re two types of cast iron brake block, normal type and high phosphorous cast iron brake shoe. The difference lies in the content of the phosphorus. The P content in normal type is 0.7-1.0%, while in high phosphorous cast iron brake block, the P content is above 10%.The wear resistance of high phosphorus cast iron brake is 1 times bigger than normal type. Practice shows that the life span of high-phosphorus brake block is 2.5 times of the normal type.High phosphorus brake block is also characterized by little spark.The friction coefficient increases with the increasing of phosphorus content, so the friction coefficient of high phosphorus brake brake is greater than the normal type.However, the high phosphorus content will increase the brittleness, so when the phosphorus content is above 1%, there may be crack, so it requires a backing plate for high phosphorous brake block....
