ASCE Rail

Related presentations

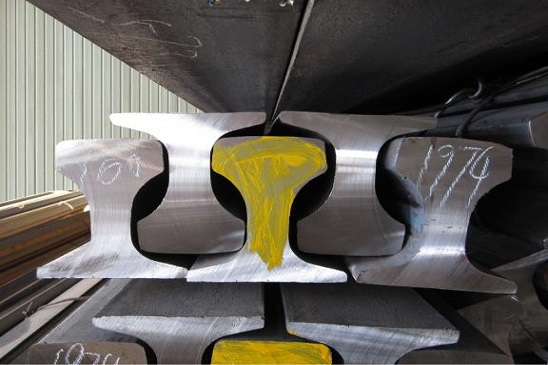

We supply ASCE, ARA-A and AREMA rail, some types we have are: ASCE25, ASCE30, ASCE40, ASCE60, ASCE75, ASCE85, 90ARA-A, 115RE, 136RE, 175LBS.

Specification as follows:

ASCE, ARA-A, AREMA Standard rail
Type	Dimension (mm)				Weight (kg/m)	Material	Length (m)
Type	Head	Height	Bottom	Web	Weight (kg/m)	Material	Length (m)
ASCE25	38.1	69.85	69.85	7.54	12.4	700	6-12
ASCE30	42.86	79.38	79.38	8.33	14.88	700	6-12
ASCE40	47.62	88.9	88.9	9.92	19.84	700	6-12
ASCE60	60.32	107.95	107.95	12.3	29.76	700	12-25
ASCE75	62.71	122.24	122.24	13.49	37.2	900A/1100	12-25
ASCE85	65.09	131.76	131.76	14.29	42.17	900A/1100	12-25
90RA	65.09	142.88	130.18	14.29	44.65	900A/1100	12-25
115RE	69.06	168.28	139.7	15.88	56.9	900A/1100	12-25
136RE	74.61	185.74	152.4	17.46	67.41	900A/1100	12-25
175LBS	109.86	152.4	152.4	38.1	86.8	900A/1100	12-25
