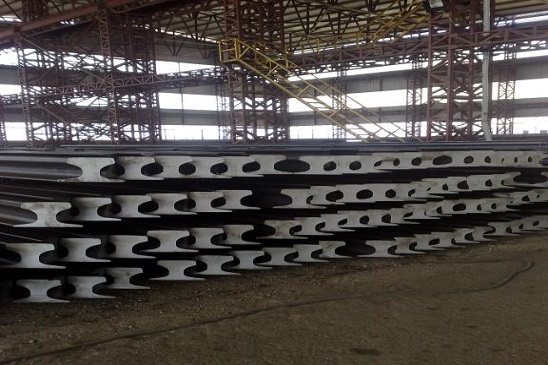

UIC Rail

Related presentations

We supply UIC860 standard rail, the types we have are UIC50, UIC54, UIC60.

Specification as follows:


UIC860 Steel rail

Type

Dimension (mm)

Weight

(kg/m)

Material

Length

(m)

Head

Height

Bottom

Web

UIC50

70

152

125

15

50.46

900A/1100

6-12

UIC54

70

159

140

16

54.43

900A/1100

6-12

UIC60

74.3

172

150

16.5

60.21

900A/1100

6-12

Related Products

  • ASCE Rail

    We supply ASCE, ARA-A and AREMA rail, some types we have are: ASCE25, ASCE30, ASCE40, ASCE60, ASCE75, ASCE85, 90ARA-A, 115RE, 136RE, 175LBS. Specification as follows:ASCE, ARA-A, AREMA Standard rail Type Dimension(mm) Weight (kg/m) Material Length (m) Head Height Bottom Web ASCE25 38.1 69.85 69.85 7.54 12.4 700 6-12 ASCE30 42.86 79.38 79.38 8.33 14.88 700 6-12 ASCE40 47.62 88.9 88.9 9.92 19.84 700 6-12 ASCE60 60.32 107.95 107.95 12.3 29.76 700 12-25 ASCE75 62.71 122.24 122.24 13.49 37.2 900A/1100 12-25 ASCE85 65.09 131.76 131.76 14.29 42.17 900A/1100 12-25 90RA 65.09 142.88 130.18 14.29 44.65 900A/1100 12-25 115RE 69.06 168.28 139.7 15.88 56.9 900A/1100 12-25 136RE 74.61 185.74 152.4 17.46 67.41 900A/1100 12-25 175LBS 109.86 152.4 152.4 38.1 86.8 900A/1100 12-25

  • DIN536 Crane rail

    We supply DIN536 Crane rail: A55, A65, A75, A100, A120Specification as follows:DIN536Crane rail Type Dimension(mm) Weight (kg/m) Material Length (m) Head Height Bottom Web A45 45 55 125 24 22.1 900A 6-12 A55 55 65 150 31 31.8 900A 6-12 A65 65 75 175 38 43.1 900A 6-12 A75 75 85 200 45 56.2 900A 6-12 A100 100 95 200 60 74.3 900A 6-12 A120 120 105 220 72 100 900A 6-12

  • GB Rail

    We supply chinese Standard light rail according to GB11264-89, some types we have are: GB6KG, GB9KG, GB12KG, GB15KG, GB22KG, GB30KGChinese standard light rail according to YB222-63, such as 8kg, 18kg, 24kg rail Chinese Standard heavy rail according to GB2585-2007: GB38KG, GB43KG, GB50KG Chinese Standard crane rail: QU70, QU80, QU100, QU120 Specification as follows: GB11264-89Light rail Type Dimension(mm) Weight (kg/m) Material Length (m) Head Height Bottom Web GB6KG 25.4 50.8 50.8 4.76 5.98 Q235B 6-12 GB9KG 32.1 63.5 63.5 5.9 8.94 Q235B 6-12 GB12KG 38.1 69.85 69.85 7.54 12.2 Q235B/55Q 6-12 GB15KG 42.86 79.37 79.37 8.33 15.2 Q235B/55Q 6-12 GB22KG 50.3 93.66 93.66 10.72 22.3 Q235B/55Q 6-12 GB30KG 60.33 107.95 107.95 12.3 30.1 Q235B/55Q 6-12 YB222-63Light rail Type Dimension(mm) Weight (kg/m) Material Length (m) Head Height Bottom Web 8kg 25 65 54 7 8.42 Q235B 6-12 18kg 40 90 80 10 18.06 Q235B/55Q 6-12 24kg 51 107 92 10.9 24.46 Q235B/55Q 6-12 GB2585-2007Heavy rail Type Dimension(mm) Weig...
