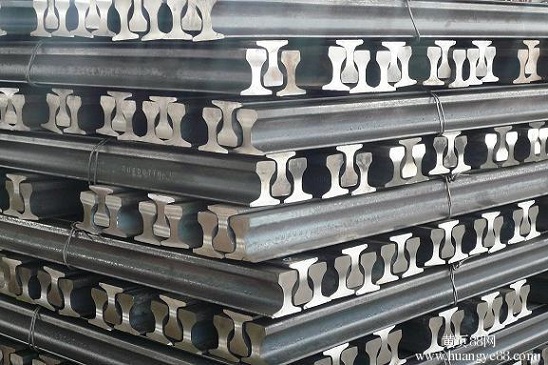

GB Rail

Related presentations

We supply chinese Standard light rail according to GB11264-89, some types we have are: GB6KG, GB9KG, GB12KG, GB15KG, GB22KG, GB30KG

Chinese standard light rail according to YB222-63, such as 8kg, 18kg, 24kg rail

Chinese Standard heavy rail according to GB2585-2007: GB38KG, GB43KG, GB50KG

Chinese Standard crane rail: QU70, QU80, QU100, QU120

Specification as follows:

GB11264-89 Light rail

Type

Dimension (mm)

Weight

(kg/m)

Material

Length

(m)

Head

Height

Bottom

Web

GB6KG

25.4

50.8

50.8

4.76

5.98

Q235B

6-12

GB9KG

32.1

63.5

63.5

5.9

8.94

Q235B

6-12

GB12KG

38.1

69.85

69.85

7.54

12.2

Q235B/55Q

6-12

GB15KG

42.86

79.37

79.37

8.33

15.2

Q235B/55Q

6-12

GB22KG

50.3

93.66

93.66

10.72

22.3

Q235B/55Q

6-12

GB30KG

60.33

107.95

107.95

12.3

30.1

Q235B/55Q

6-12



YB222-63 Light rail

Type

Dimension (mm)

Weight

(kg/m)

Material

Length

(m)

Head

Height

Bottom

Web

8kg

25

65

54

7

8.42

Q235B

6-12

18kg

40

90

80

10

18.06

Q235B/55Q

6-12

24kg

51

107

92

10.9

24.46

Q235B/55Q

6-12


GB2585-2007 Heavy rail

Type

Dimension (mm)

Weight

(kg/m)

Material

Length

(m)

Head

Height

Bottom

Web

GB38KG

68

134

114

13

38.733

50Mn/U71Mn

12.5

GB43KG

70

140

114

14.5

44.653

50Mn/U71Mn

12.5

GB50KG

70

152

132

15.5

51.514

50Mn/U71Mn

12.5


YB/T5055-93 Crane rail

Type

Dimension (mm)

Weight

(kg/m)

Material

Length

(m)

Head

Height

Bottom

Web

QU70

70

120

120

28

52.8

U71Mn

12

QU80

80

130

130

32

63.69

U71Mn

12

QU100

100

150

150

38

88.96

U71Mn

12

QU120

120

170

170

44

118.1

U71Mn

12
