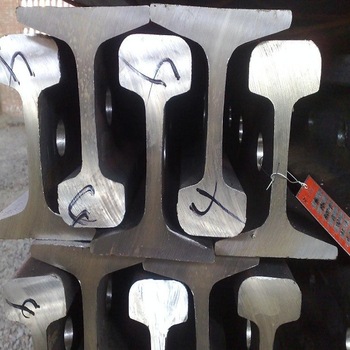

BS Rail

Related presentations


We supply BS11 Standard steel Rail, types we have are: 50O, 60A, 75A, 75R; 80A, 80R, 85A, 90A, 100A, 113A

Specification as follows:

BS11-1985 Steel rail

Type

Dimension (mm)

Weight

(kg/m)

Material

Length

(m)

Head

Height

Bottom

Web

50O

52.39

100.01

100.01

10.32

24.833

700

6-18

60A

57.15

114.3

109.54

11.11

30.618

900A

6-18

60R

57.15

114.3

109.54

11.11

29.822

700

6-18

70A

60.32

123.82

111.12

12.3

34.807

900A

8-25

75A

61.91

128.59

114.3

12.7

37.455

900A

8-25

75R

61.91

128.59

122.24

13.1

37.041

900A

8-25

80A

63.5

133.35

117.47

13.1

39.761

900A

8-25

80R

63.5

133.35

127

13.49

39.674

900A

8-25

90A

66.67

142.88

127

13.89

45.099

900A

8-25

100A

69.85

152.4

133.35

15.08

50.185

900A

8-25

113A

69.85

158.75

139.7

20

56.398

900A

8-25
