Vossloh fastening system

Related presentations

The vossloh fastening system or SKL fastening system is very widely used in heavy haul, high speed or standard track, among them W14 fastening system is the most popular one.

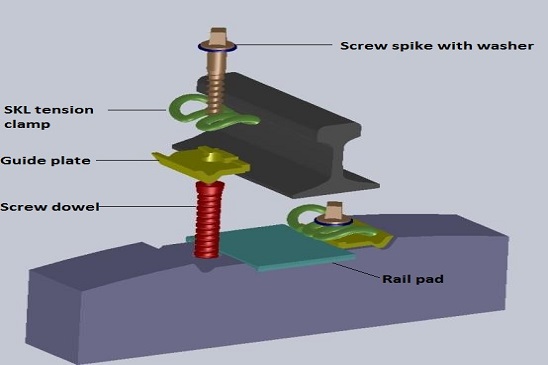

The vossloh fastening system is made up screw spike, screw dowel, SKL tension clamp, guide plate and rail pad.

One set of vossloh fastening system include:

4 screw spike + 4 screw dowel + 4 SKL tension clamp + 4 guide plate +2 rail pad

More information about the fastening components:

Screw spike:

Screw spike, also known as Tirefond or sleeper screw, and it is called timber screw in America. Screw spikes are used for fastening baseplates and rails to timber sleepers.

Screw spikes are used for indirect or direct fastenings of rails on concrete and wooden sleepers.

We can supply a wide range of screw spikes, manufactured to international standards according to BS, ASTM and DIN, and others.

The screw spikes can be tailored to meet the needs of any track system.

Some types of screw spike we produced are ASTM A66-87 screw spike, UIC864-1 screw spike (Ss series Ss8, Ss23, Ss25, Ss35, Ss36, DHS35 etc), 3V screw spike meet to NF F50-006, to name just a few.



Screw dowel:

Screw dowel is produced with the material HDPE or PA66, it is pressed in concrete sleeper and used in combination with the screw spike. We have screw dowel Sdu9, Sdu25



SKL tension clamp:

We have SKL1, SKL3, SKL12, SKL14, material used is 60Si2CrA or 38Si7



Guide plate

The guide plate is also called insulator, it is of different shape with e clip type insulator (GPI).

Angle guide plate is used under tension clamp to keep the rail in lateral position and the lateral forces are passed on to the concrete sleeper by means of guide plate. We have Wfp 14k 14.5, Wfp 14k 12 etc



Rail pad:

Some types of rail pad used with the vossloh fastening system are ZW686, ZW687, ZW700…



Related Products

  • Rail anchor system

    Rail anchor is produced with spring steel or equivalent materials, it is designed to eliminate the move of track. The rail anchor can provide a large bearing surface against the rail base. When the rail anchor is driven in the rail feet, the rail anchor grips the rail tightly and it resists the movement of the rails caused by passing trains.We have different types of rail anchor to suit different rail sections such as 85LB, 90LB, 50kg, 115RE, UIC54, UIC60 etc

  • E clip fastening system

    The elastic clip fastening system is made up of elastic clip, insulator, e clip type baseplate or shoulder and a rail pad. The elastic fastening system can be supplied in a complete assembling, one complete consists the following items: 2 elastic rail clip + 2 insulator +2 shoulder (1 baseplate) + 1 rail pad More information about the item: Elastic rail clip: We produce various elastic rail clip from diameter 12mm to 20mm. With the strict dimensional control as well as the use of high quality spring steels\, we ensure that the elastic rail clip supplied by us are within the specified ranges . There’re different types of elastic rail clip we produce: Elastic clip, e1609, e1809, e1817, e2005, e2055, e2007, e2009, e2091 etc PR clip, PR309, PR401, PR601A etc Vossloh type tension clamp: SKL1, SKL3, SKL12, SKL14, this vossloh tension clamp is used together with the screw spike Gauge lock clip, GL1419 Deenik clip (Grampo Deenik): produced in both round and square bar Nabla clip: the Nab...

  • Deenik fastening system

    The deenik fastening system is widely used in South America. Rail deenik clip is produced with round or square steel bar, material is 60Si2MnA, 55Si7 or equivalent. The deenik clip offers an increased elasticity and fatigue resistance, it has a relatively longer lifespan.
