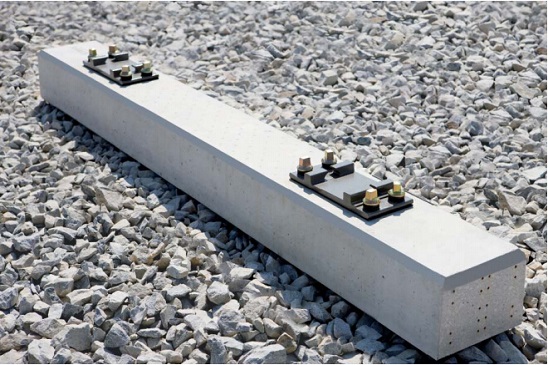

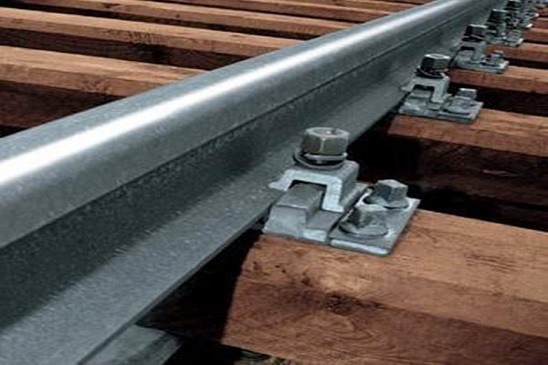

The K type fastening system is made up of the following items:
Clamping plate: A clamping plate is a forged item, we have KPO3, KPO6. The KPO clip is a boltable clip, it is used together with the ribbed baseplate and clip bolt.
Clip bolt: also called hook bolt is used for the fastening of the ribbed baseplate. The most common used ones are HS26, HS32
Ribbed baseplate: It is one type of baseplate we offer, normally it is casted.
Sleeper screw: The sleeper screw is used to fasten the ribbed baseplate to wooden sleepers, when used in the concrete sleeper, it is used together with the plastic dowel.
Fe6 spring washer: It is pre-assembled with the sleeper screw, normally it is used to distribute the load of a threaded fastener.
The elastic clip fastening system is made up of elastic clip, insulator, e clip type baseplate or shoulder and a rail pad. The elastic fastening system can be supplied in a complete assembling, one complete consists the following items: 2 elastic rail clip + 2 insulator +2 shoulder (1 baseplate) + 1 rail pad More information about the item: Elastic rail clip: We produce various elastic rail clip from diameter 12mm to 20mm. With the strict dimensional control as well as the use of high quality spring steels\, we ensure that the elastic rail clip supplied by us are within the specified ranges . There’re different types of elastic rail clip we produce: Elastic clip, e1609, e1809, e1817, e2005, e2055, e2007, e2009, e2091 etc PR clip, PR309, PR401, PR601A etc Vossloh type tension clamp: SKL1, SKL3, SKL12, SKL14, this vossloh tension clamp is used together with the screw spike Gauge lock clip, GL1419 Deenik clip (Grampo Deenik): produced in both round and square bar Nabla clip: the Nab...
Rail anchor is produced with spring steel or equivalent materials, it is designed to eliminate the move of track. The rail anchor can provide a large bearing surface against the rail base. When the rail anchor is driven in the rail feet, the rail anchor grips the rail tightly and it resists the movement of the rails caused by passing trains.We have different types of rail anchor to suit different rail sections such as 85LB, 90LB, 50kg, 115RE, UIC54, UIC60 etc
The Nabla fastening system is widely used in France and Africa railways. It is compliant with EN13481-5 standard.The Nabla fastening system consists the following items: Nabla blade: The Nabla blade is made up of alloy spring steel according to NF F50-015 standard Insulator: This insulator is specially designed for the Nabla blade, we also call it support pad High strength bolt with nut and washer
